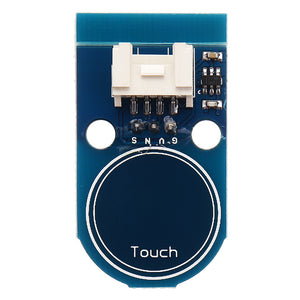

10pcs Touch Switch Module Double-sided Touch Sensor TouchPad 4p/3p Interface
Tax included.
Feature:
PCB size: 38 x 24 x 1.6mm
Wokring voltage: 3.3/5VDC
Compatible interfaces: 2.54mm 3-pin interface and 4-pin grove interface
Note: S for voltage digital output port, N for not used pin, V and G for voltage at the common collector and ground respectively. When there is no operation, digital output is VDD, when the button is pressed down, the digital output is 0V.
| Electrical characteristics | Min. | Typical | Max. | Unit |
| Supply voltage | 2 | 3 | 5.5 | VDC |
| Working current (VCC=5V) | - | 18 | - | uA |
| Digital output voltage (VCC=5V) | 0 | - | 5 | V |
Package includes:
10 x Touch Switch Module
