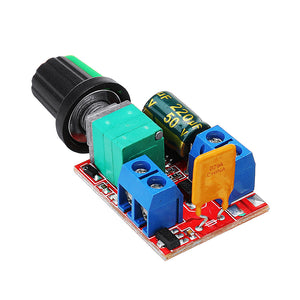

10Pcs DC 3V To DC 35V 5A 90W Mini DC Motor PWM Speed Controller Module Speed Regulator Adjustable Li
Mini wide voltage DC motor governor, using the latest low voltage drive technology, suitable for voltage wide DC3-35V (3-9V input needs to be shorted), with self-recovery fuse, also suitable for LED dimming.
Operating voltage: DC3V-35V
Output current: 0-5A
Output power: 90W (max)
PWM duty cycle: 1% -100%
PWM frequency: 10khz
Size: 30mm x 24mm x 15mm (Without Handle)
- DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!
- DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.
- The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
- Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.
10 x PWM DC Motor Speed Controller
