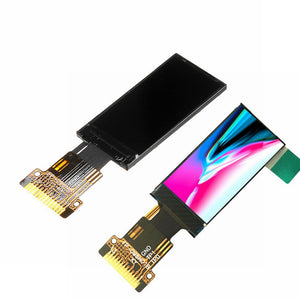

0.96 Inch HD RGB IPS LCD Display Screen SPI 65K Full Color TFT ST7735 Drive IC Direction Adjustable

Parameter:



1. LCD Size: 0.96 inches

2. Dot Matrix Size: 80*160 (Display direction can be adjusted, horizontal screen and vertical screen are ok)

3. LCD Color: 65K Full Color

4. Hardware Interface: SPI interface

5. Driver IC: ST7735

6. Operating Temperature: -20??to 70??/span>

7. Working Power Supply: 3.3V

8. PIN NO: 13Pin

9. Display Area: 10.8x 21.696mm

10. Size: 13.3*27.95mm

11 Viewing Direction: Full viewing angle (IPS)



Interface Definition:


1: TPO

2: TP1

3: SDA

4: SCL

5: RS

6: RES

7: CS

8: GND

9: NC

10: VCC

11: LEDK

12: LEDA

13: GND



Package Included:



1 x 0.96 Inch HD RGB IPS LCD Display Screen
