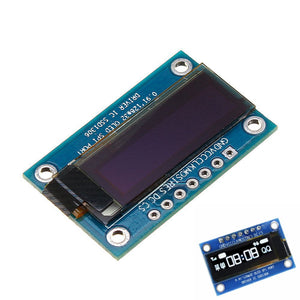

0.91 Inch 128x32 SPI Port OLED LCD Display Screen Module SSD1306 Driver IC DC 3.3V-5V For Arduino
Tax included.
Specifications:
Driver IC: SSD1306
Size: 0.91 inch OLED
Resolution: 128 x 32
Font Color: Blue
Voltage: DC 3.3-5V
PIN Interface: SPI
Features:
OLED display, no need backlight, self-illumination, the display performance is better than the traditional LCD display, also lower consumption.
SPI Pin Definition:
GND: Power ground
VCC: Power
CLK: Clock line
MOSI: Data cable
RES: Reset line
DC: Data/commands
CS: Chip select (when not use can be grounded directly)
Packaged Included:
1 x 0.91 Inch OLED LCD Display Module
