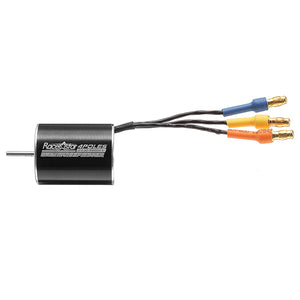

Racerstar 2430 Motor Brushless Waterproof Sensorless 8200/7200/5800KV
Tax included.
Description:
Brand: Racerstar
Item: 2430 Motor
Waterproof Level: Splash-proof
Motor Features:
- 4 pole 12 slot hi-torque motor design
- CNC machined 6061 T6 billet aluminum heatsink can
- High purity copper windings maximizes efficiency
- High RPM ABEC 5 oversized bearings
- Universal fit, fits all 1/16, 1/18, 1/20 brushless cars; multi-mounting system for M2.5 screws
- Precision balanced rotor, smoothness for best reliability and maxium RPM
- Stator- super thin (0.35mm) laminations
- Removalbe/replaceable rotor
- Precision engineered for maxium energy coversion
Motor Specification:
| Product | Watts | Max Voltage | Max Amps | Rotor Poles | IO | Resistance | KV (RPM/Volt) |
Max RPM | Length | Diameters | Weight (g) |
Shaft (mm) |
Length of Extend Shaft | Connector |
| 2430 | 200 | 8.4V | 24A | 4 | 2.3A | 0.007 | 7200 | 60000 | 30mm | 24mm | 58 | �? | 12mm | 3.5mm gold |
| 2430 | 200 | 10.8V | 18A | 4 | 1.9A | 0.013 | 5800 | 60000 | 30mm | 24mm | 58 | �? | 12mm | 3.5mm gold |
| 2430 | 200 | 7.2V | 28A | 4 | 3.6A | 0.004 | 8200 | 60000 | 30mm | 24mm | 68 | �? | 12mm | 3.5mm gold |
Note:
Racerstar 2430 motor usually works with 25A ESC.
For more information, please click here.
Package Included:
1 x Motor
