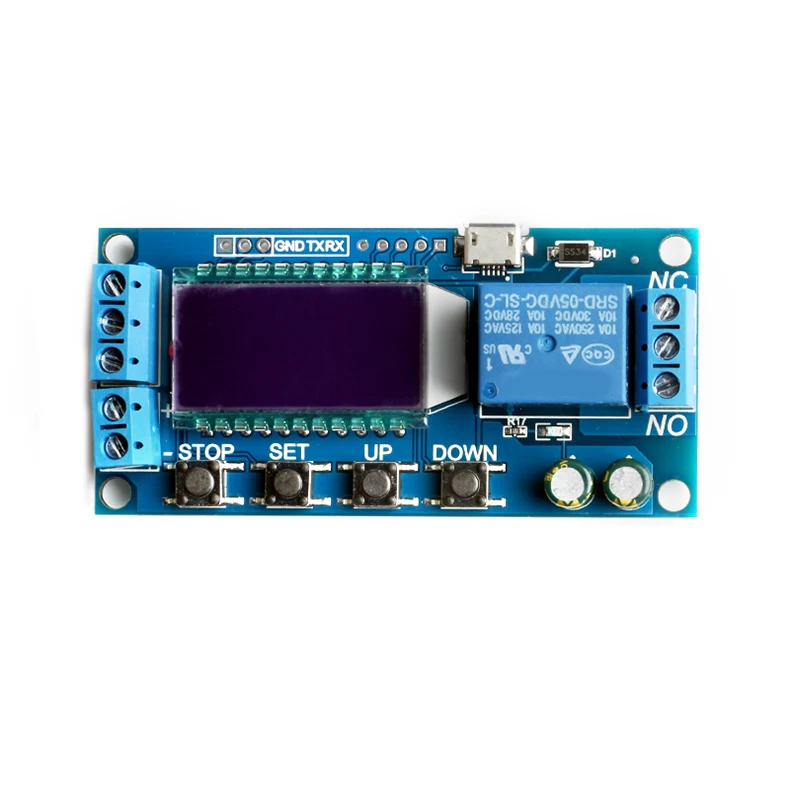

6-30V Micro USB Digital LCD Display Time Delay Relay Module Control Timer Switch Trigger Cycle Module XY-LJ02

6-30V Micro USB Digital LCD Display Time Delay Relay Module Control Timer Switch Trigger Cycle Module XY-LJ02

  • Save R 820
Tax included.
SKU:

Description

Relay module delay power off and trigger delay cycle timing circuit switch

Timing Range:0.01 sec~9999 min

This product lcd display, very clear, simple and easy to use, powerful, but please read user instructions carefully before using.

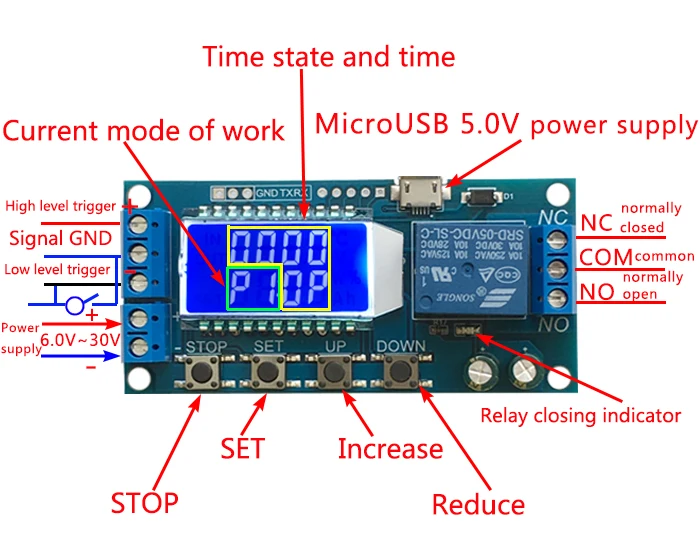

lProduct Highlights:

1.Display with LCD two columns, Can display parameters directly;

2.Trigger mode: high and low level,switch quantity.meet most of the needs.

3.Power supply: 6~30V, also supports micro USB 5.0V, very convenient.Anti back connection of power supply.

4.Parameters can be modified via UART.

5.Stop button to provide emergency stop function.

6.5 minutes without any operation into a low-power state. Any action wake up.

7.OP/CL/LOP params can be modified individually

8.All parameters are automatically saved by power off.

lWorking Mode Introduction(P1~P7)

P1: After the signal is triggered, the relay conduction in OP time then disconnects; In the OP time, the signal is invalid.

P2: After the signal is triggered, the relay conduction in OP time then disconnects; In the OP time, the signal triggers a new timer.

P3: After the signal is triggered, the relay conduction in OP time then disconnects; In the OP time, signal trigger reset timer,relay disconnected and stop timing.

P4: When triggered,After the relay is disconnected from CL time, relay conduction OP time, after timing is complete, disconnect relay.

P5: When triggered, After the relay conduction op time, the relay disconnects the CL time, and then loops the above action, gives the signal again in the loop, relays disconnect, stops the timer, and the number of cycles (LOP) can be set;

P6: When triggered, After the relay conduction op time, the relay disconnects the CL time, and then loops the above action, signal is invalid in the loop, the number of cycles (LOP) can be set;

P7: Signal hold function: The signal is maintained, the timing is cleared, and the relay conduction; when the signal disappears, the relay disconnects after the timing OP; during the timing, there is another signal and the timing is cleared;

lProduct Parameters:

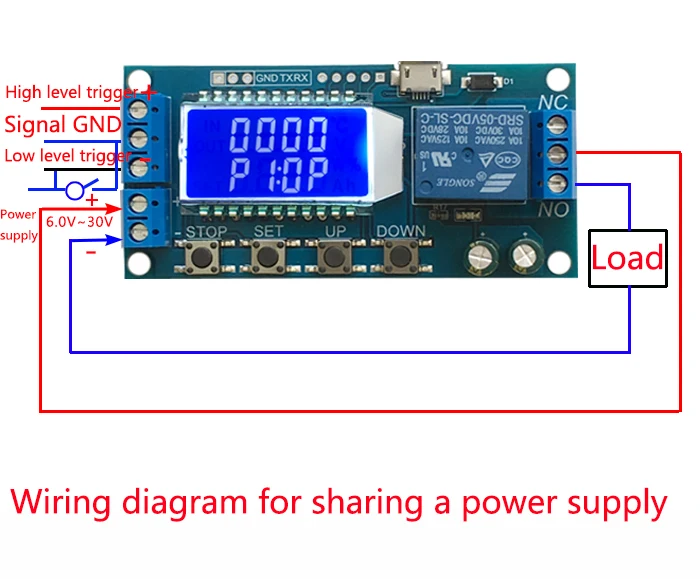

1.Power Supply: 6V~30V and micro USB 5.0 V

2.Trigger signal source: High level(3.0V~24.0V),Low level(0.0V ~0.2V),Switch signal.

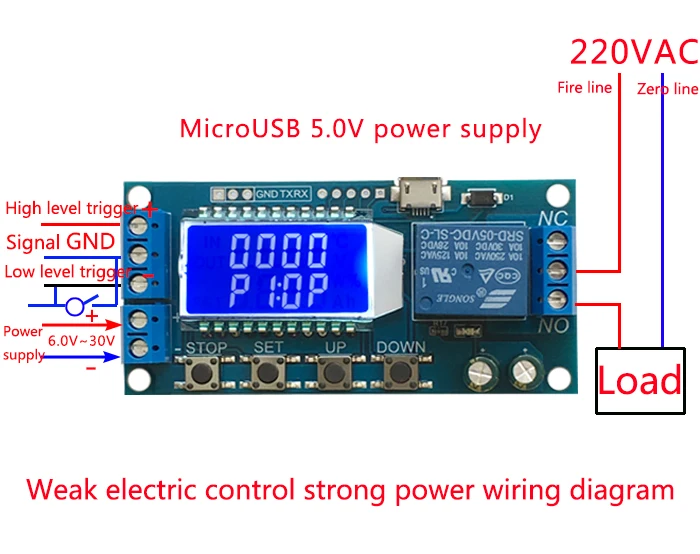

3.Maxmum Output load: DC 30V 5A and AC 220V 5A.

4.Static Current: 15mA Operating current: 50mA.

5.Service life: more than 100,000 times; working temperature: -40-85°C; size: 8.0*3.8*1.9cm.

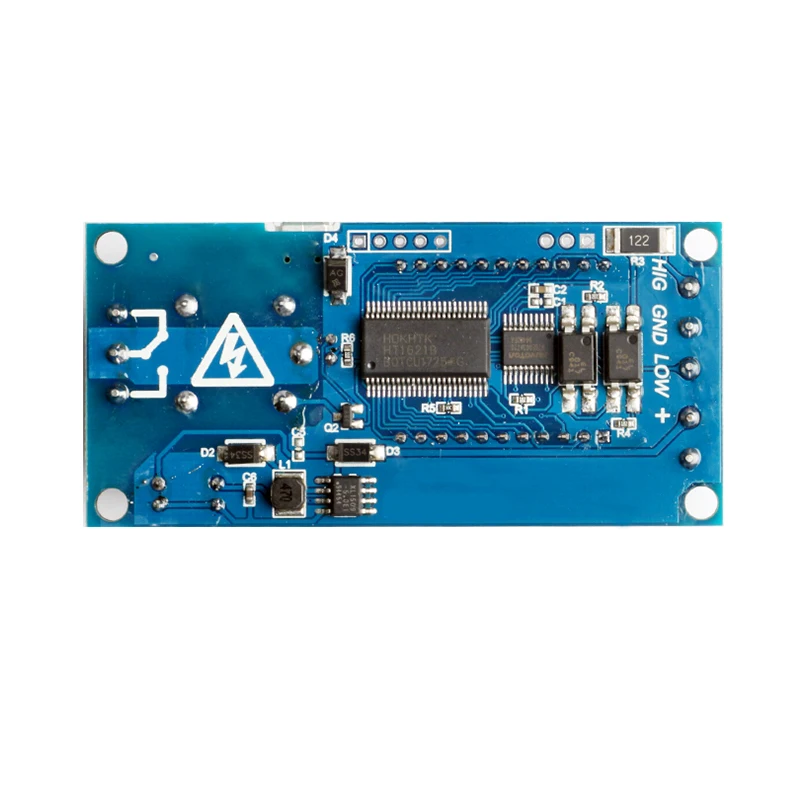

6.Optocoupler isolation,Strong anti-interference ability,Industrial grade circuit board
