1.2G 1500mW Wireless 8CH Transmitter 12CH Receiver Camera AV Audio Video Transmission System for Displayer Monitor FPV OSD
Tax included.
This item includes a wireless display 12 channels receiver and a digital 8 channels transmitter, which can be regarded as a wireless audio & video transmission system. It can wirelessly and simultaneously transmit the analog audio and video signal source of the camera or VCD/DVD players to the Displayer or monitor.. It will bring users much convenience and fun.
Note: It cannot solely transmit the audio signal.And, this item does not include power adapter, you should buy it by yourself.
Features:
Compatible with digital TV set-top boxes, VCD/DVD players, digital cameras and other suitable devices.
Effectively solve the problems of sharing audio or video with your families: This item will build a wireless family’s audio-visual system of entertainment by working with the HDTV or HD projection machine and let users greatly enjoy the audio-visual system of home theatre.
Transmission distance: 200-250m (Open space?and the transmission distance greatly depends on the surrounding environment).
Easy to use, convenient and quick.
With compact portable design.
Specifications:
Transmitter:
Working Voltage: DC 12V
Output Power: 1500MW
Working Current: 400mA
Output Frequency: 1.2G
Channel Number: 8-CH AV frequency in-phones (CH4: 1080Hz, CH5: 1120Hz, CH6: 1160Hz, CH7: 1200Hz, CH8: 1240Hz, CH9: 1280Hz, CH(H): 1320Hz, CH(C): 1360Hz)
Transmission distance: 1000-2000m (Open space? and the transmission distance greatly depends on the surrounding environment).
Receiver:
Voltage: DC12V
Output current: 250mA
Video Output: 1 Vp-p (FM)
Audio Output: 1 Vp-p (FM)
Frequency: 1.2G Series: 0.910G 0.980G 1.010G 1.040G 1.080G.1.120G 1.160G 1.200G 1.240G 1.280G 1.320G 1.360G

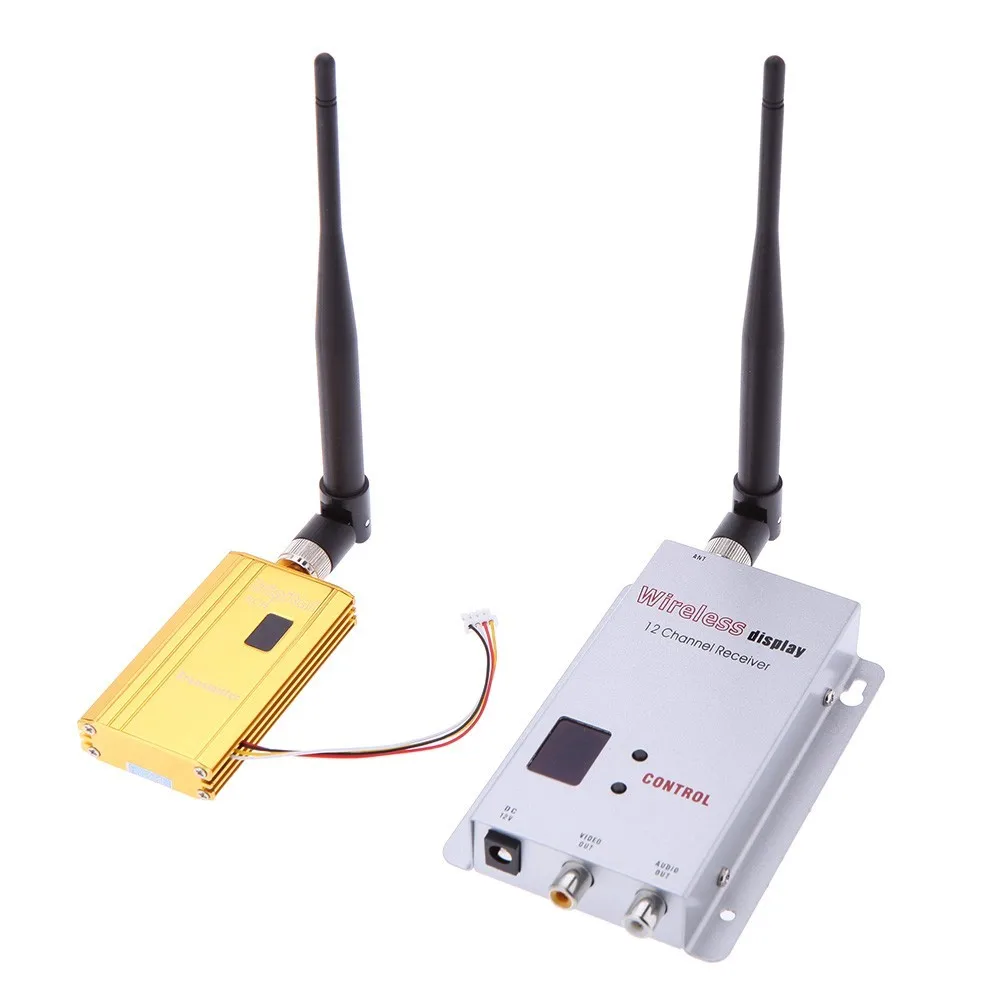

Color: Transmitter (Gold), Receiver (Silver)
Item size: Transmitter (8.5 * 4.0 * 1.4cm / 3.35 * 1.57 * 0.55in), Receiver (13.0 * 8.0 * 2.0cm / 5.12 * 3.15 * 1.18in)
Item weight: Transmitter (82g/2.92oz), Receiver (115g/4.05oz)
Package size: 22.5 * 16.0 * 7.5cm / 8.84 * 6.30 * 2.95in
Package weight: 458g /16.15oz
How to use:
Installing:
A. The line has 5 plugs for connecting transmitter, Camera and power supply. One of the line's points connecting transmitter, another have 4 plugs (red, yellow, white, black). Red plug connect DC 12V/1000mA, can also connect battery. White and yellow plug connect camera's audio and video apart. Black plug connect camera's power input jack
B. Push the CONTROL button can change the channel of receiver. Meanwhile, push it and last several seconds can close the digital play and turn into saving time model. Then push it again can replay. The function can be able to lock channel, so as to avoid mistake operation
C. Set the same channel with transmitter and receiver.
Package list:
1 * Wireless Transmitter
1 * Wireless Receiver
2 * Antenna
1 * Connecting Line for Transmitter
1 * RCA Cable
1 * User Manual
