SVBONY SV205 8MP USB Electronic Eyepiece 1.25'' USB Astronomy Camera for Astronomy Monocular Telescope
Tax included.
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Description:
Simply point your telescope at the Moon or a planet and record a quick video. The included software analyzes each frame of video, throws away the fuzzy ones, and perfectly aligns the remaining images. The result is a bright, clear image with the maximum amount of color and detail. SV105 is a great way to get started with astroimaging, especially if you live in a light-polluted area. If you can see the planet the sky, you can image it with SV205!
Hot Spot:
1.The chip pixel is up to 8 million, the shooting details are clearer
2.USB3.0 interface, the transmission speed is faster than USB2.0, and the transmission speed in 8 million full resolution YUV format can reach 15 frames / second
3.The image processor adopts dark light compensation technology, newly added gain adjustment function, and with the exposure time of up to 1000MS, it can better cope with the lack of light environment
Features:
1.Plug and play without driver, real-time dynamic observation by crystal clear image.
2.The image processor uses dark light compensation technology to greatly improve the camera's image clarity in low light conditions.
3.In MJPG video format, You can record video quickly and the frame rate up to 30FPS at 2K resolution 1920x1080; if you want high quality image, please choose YUV uncompressed video format.
4.Fun and useful USB eyepiece camera allows you to transmit the real-time view through your telescope to a laptop or PC, and capture great digital movies and images
5.Share the view of bright planets, the Moon, and terrestrial targets through your telescope with friends, family, and fellow astronomy enthusiasts
6.An affordable introduction to the rewarding hobby of astrophotography. Great for lunar and planetary shots - not suitable for deep space imaging
7.Machined aluminum 1.25' adapter barrel for direct threaded connection to almost any telescope
Specification:
|
Brand |
SVBONY |
|
Model |
SV205 |
|
Sensor Model |
1/3.2' CMOS Color |
|
Sensor Model |
IMX179 |
|
Pixel Size |
1.4µmx1.4µm |
|
Resolution |
8 Mega Pixels(3264*2448) |
|
USB Type |
USB3.0 |
|
Shutter |
Electronic Rolling Shutter |
|
Exposure Time |
15ms~1000ms |
|
Gain |
0-120 |
|
Maximum Frame Rate |
15FPS(3264*2448)30FPS(1920*1080) |
|
ADC |
10 bit |
|
Interface Type |
Standard UVC protocol |
|
Cable Length |
1.2m |
|
Weight |
100g |
|
Support OS |
Windows, Linux, ,Android,(not Mac) |
|
Support Telescope |
Telescope with 1.25'' diagonal |
|
Power Consumption |
230mA@5V |
|
Working Humidity |
30%-80% |
|
Storage Humidity |
20%-90% |
|
Operating Temperature |
0°C~50°C |
|
Storage Temperature |
-10°C~60°C |
Package includes:
1 x Electronic Eyepiece
1 x Lens cleaning cloth
1 x English Manual
1 x Cable

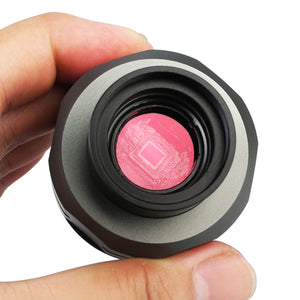

Details Pictures:
