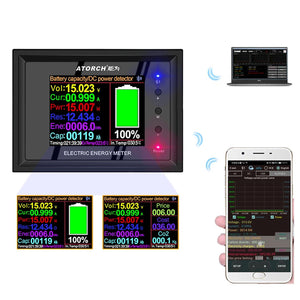

DT24 Digital Display DC Power Supply Voltmeter Ammeter Battery Capacity Tester Battery Fuel Gauge Power Meter
Tax included.
Introduction:
Torch has once again made breakthroughs in the development of technical engineers, and has designed and launched a new wide-range high-voltage, high-current 380V / 30A high-power large-color screen Bluetooth wireless digital transmission curve multi-function energy meter, which supports 3 major computer online system APP software, and Android Apple PC Bluetooth wireless connection through killing applications, a variety of measurement parameters are readily available to adapt to a variety of measurement applications, one machine for multiple uses.
Product use: This product is used to test the capacity of various batteries, discharge and age various power adapters, and detect the voltage, current, and other parameters of various DC power supplies.
File Download Way:
1, User manual, PC software installation instruction and PC software and Android APP download link : http://www.mediafire.com/folder/m09i9bjv8703d/DT24
2, IOS APP: search E_test on APP stor to download
3. Android APP: search E-test at Google play to down load
Specification:
Product Size:
Installation size: length 76mm X width 53mm
Panel size: length 85.7mm X width 63mm
Electrical parameters:
Voltage measurement range under test voltage power supply mode: 7 ~ 380V
Voltage measurement range in independent voltage supply mode: 0 ~ 380V
Measuring power: 0 ~ 11400 W (0 ~ 11.4 kW)
Measuring current range: 0 ~ 30A
Reminder: If you enable the external power-off relay, please be sure to supply the system with independent power supply 5V /> 1A power supply to avoid the failure of the relay control current and system instability
Package includes:
1 X 2.4 inch DC color screen voltmete
2 X Crocodile clip red black male and female
1 X 2.54MM terminal temperature probe
Details picture:
