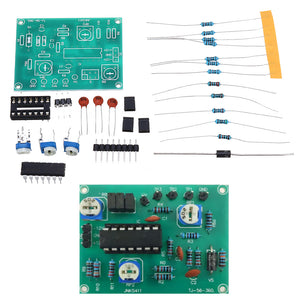

DIY LM324 Multi-waveform Generator Electrical Skills Exercise Board Practice Parts
Tax included.
Feature:
| Label | Name | Specification | Quantity |
| R11 | Inline color ring resistance | 2.2K | 1 |
| R0 R2 R4-5 R6b R7 R9 | Inline color ring resistance | 10K | 7 |
| R1 | Inline color ring resistance | 100K | 1 |
| R10 | Inline color ring resistance | 220K | 1 |
| R3 | Inline color ring resistance | 510 | 1 |
| R6A | Inline color ring resistance | 100 | 1 |
| R8 | Blue and white adjustable resistor | 5K | 1 |
| RP1 | Blue and white adjustable resistor | 5K | 1 |
| RP2 | Blue and white adjustable resistor | 10K | 1 |
| VS | Inline bidirectional diode | 6.8V | 1 |
| C1 C2 C3 | Ceramic capacitor | 104 | 3 |
| IC | DIP IC | LM324 | 1 |
| IC Block | 14P | 1 | |
| TP1 TP2 TP3 TP5 Uo | Single pin | 1P | 5 |
| DC | Single pin | 3P | 1 |
| S | Double pin | 3P*2 | 1 |
| Short-circuit cap | 3 |
Note: This is an unassembled kit and you need to solder it.
1 x DIY KIT
