DC 9V Digital Oscilloscope Kit DIY Electronic Production Kit Parts DSO138

DC 9V Digital Oscilloscope Kit DIY Electronic Production Kit Parts DSO138

  • Save R 1,092.06
Tax included.
SKU:

Characteristic index:


Real-time sampling rate: 1Msps

Accuracy: 12Bit

Sampling buffer depth: 1024 bytes

Analog bandwidth: 0-200KHz

Vertical sensitivity: 10mV/Div ??5V/Div (Progress according to 1-2-5)

The vertical displacement can be adjusted with instructions

Input impedance: 1MΩ

Input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)

Coupling methods include DC/AC/GND

Horizontal time base range: 10μs/Div ??50s/Div (advance according to 1-2-5)

With automatic, conventional and single trigger mode, it is convenient to capture instant waveform

Trigger on rising or falling edges

Trigger level position can be adjusted with indication

Observable waveform before trigger (negative delay)

Waveform display can be frozen at any time (HOLD function)

Comes with 1KHz /3.3V square wave test signal source

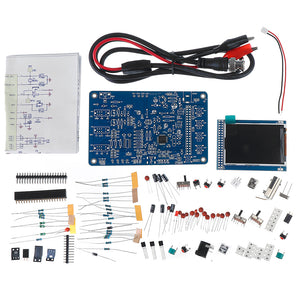

Package includes:


1 x DIY KIT
