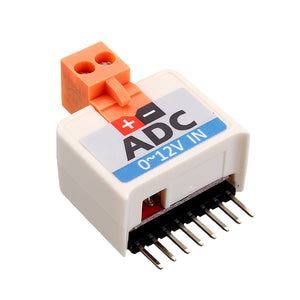

ADC Module ADS1100 for Analog Signal Capture Converter Compatible M5StickC ESP32 Mini IoT Development Board Fi

Description:

ADC_HAT is another type of C-HAT specifically design for M5StickC controller. Same as ADC unit, this is an ADC converter component for stickc. Packed with an ADC converter chip ADS1100, which is a fully differential, 16-bit, self-calibrating, A/D converter. Extremely easy to design with and configure, the ADS1100 allows you to obtain precise measurements with a minimum of effort.
The ADS1100 consists of a A/D converter core with adjustable gain, a clock generator, and an I2C interface.
ADS1100 itself is able to accept a differential input from -5 ~ +5 V, but we have limited the input to 0~12V by adding on the peripheral circuit design of this IC.

Product Features:

• M5StickC Compatible
• Input: 0-12V
• Software Development Platform: , UIFlow(Blockly, Python)
• ADS1100
  • 16-bits Resolution
  • CONTINUOUS SELF-CALIBRATION
  • SINGLE-CYCLE CONVERSION
  • PROGRAMMABLE GAIN AMPLIFIER GAIN = 1, 2, 4, OR 8
  • LOW NOISE: 4μVp-p
  • PROGRAMMABLE DATA RATE: 8SPS to 128SPS
  • INTERNAL SYSTEM CLOCK
  • I2C INTERFACE: address 0x48

Package Included:

• 1x ADC HAT
• 1x 2 Pin 3.96 Pitch Terminal

Application:

• Analog Signal Capture

Links:

• Datasheet - ADS1100

Schematic:

EasyLoader

click to download EasyLoader
