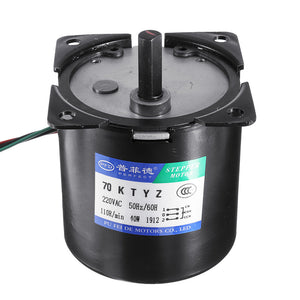

70KTYZ AC 220V 15/30/50/100rpm Electric Synchronous Motor 40W Permanent Magnet Motor Motor
Tax included.
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Description:
70KTYZ 220V Synchronous Motor 40W Permanent Magnet Gear Reduction Motor Reversible Controllable Micro Motor
Specification:
| Model | 70KTYZ |
| Voltage | AC 220V |
| Frenquency | 50Hz-60Hz |
| Power | 40W |
| Speed | 15/30/50/100 RPM (optional) |
| Torque (N.M) |
5.2/2.6/2/0.8 N.M |
| Torque(KGF.CM) |
52/25/20/8 KGF.CM |
| Motor Dimension | 70mm x 70mm |
| Shaft Type | D-Type |
| Output Shaft Diameter | 8mm |
| Output Shaft Length | 22mm??br> |
Features:
Small volume but large torque
Motor gets constant under the rated frequency, not affected by voltage.
With pure copper wire production, metal gear, constant speed.
Application:
Mainly used in instrument, automation, gluing machine, stage lamps and advertising display equipment, curtain automatic control, automatic voltage regulator, electric image, etc.
Package Included:
1 x 70KTYZ Synchronous Motor
More Details:
