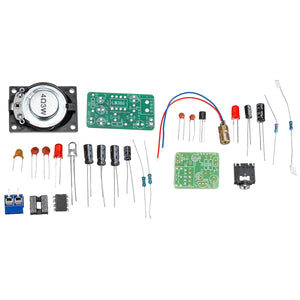

5Pcs SSY Components + PCB Board Parts Laser Tube Transmitting Audio Receiving Kit Wireless DIY Audio Transmitting Transmitter Electronic Kit
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Parameters:
Power supply voltage: 9V DC
Receiver working voltage: 4 ~ 12V
Driving speaker working voltage: 0.5W-10W
Board size: Laser tube transmitting board (22 * 26mm)
Laser audio receiving (40 * 22mm)
Laser tube emission component list | |
Component name |
Quantity |
Resistance 100R |
1 |
Resistance 51K |
1 |
Ceramic capacitor 103 |
1 |
Electrolytic capacitor 100UF / 16V |
1 |
Electrolytic capacitor 4.7UF / 50V |
1 |
Audio port PJ3F07 |
1 |
Light emitting diode LED |
1 |
NPN8050 |
1 |
Laser emission tube |
1 |
Battery button |
1 |
9V battery (optional) |
1 |
PCB board |
1 |
Audio receiving module component list | |
Component name |
Quantity |
Metal film resistor 1K |
1 |
Metal film resistor 620K |
1 |
Ceramic capacitor 104 |
2 |
Monolithic capacitor 224 |
1 |
Electrolytic capacitor 10UF / 25V |
1 |
