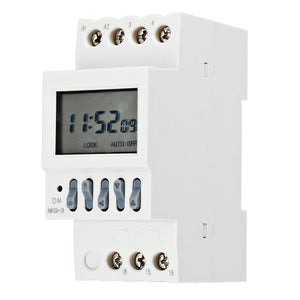

NKG-3 Timer Latitude Longitude Rail Street Lamp Controller Programmable Digital Time Switch Relay
Tax included.
Specification:
Scope of application:
Package Included:
1 x Longitude and latitude control switch
| Name | Longitude and latitude control switch |
| Model | NKG-3 |
| Internal power | Built-in battery, no need to replace |
| Working mode | Manual, Automatic switch, Dimension function switch |
| Programmable number | 8 on , 8 off |
| Time control range | 1min-168h |
| Output mode | A set of transformations |
| Contact capacity | Ue/Le: ac-15 220V/3ALth:16A |
| Electrical life | 100,000 times |
| Mechanical life | 300,000 times |
| Ambient temperature | -10 ° C to 45 ° C |
| Power | 2W |
| Installation | Device type, Guide rail type |
Scope of application:
--NKG-3 with dimension adjustment function, the set switching time can be automatically adjusted according to the local dimension and date changes.
--This product is used for the timing on and off control of street lamps, advertising light boxes and other equipment, especially for the control of street lamps and outdoor lighting.
Package Included:
1 x Longitude and latitude control switch
