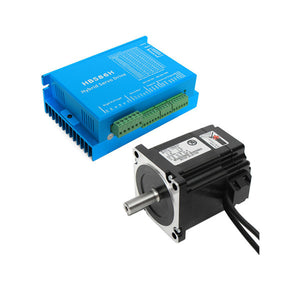

Nema34 4.5N.m Servo Stepper Motor with HSS86 Hybrid Driver

Low heat (static, the current is almost zero, no heat).

Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping motor troubled low frequency resonance has a very good resistance).

Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine / placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.

Large torque output in some cases can simplify the complexity of the machine.



Encoder Leads

EB+: yellow EB-: green EA+: black EA-: blue VCC:r ed EGND: white



Wiring

Red: A+ Green: A- Yellow: B+ Blue: B-


1 x Driver

1 x Closed Loop Motor

1 x Coding Line
