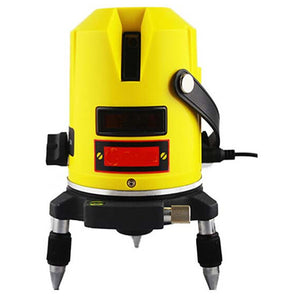

FUKUDA EK-453DP 5 Lines 3 Points 4V1H Cross Line Laser Rotary Laser Level
Tax included.
Description:
FUKUDA EK-453DP 5 Lines 3 Points 4V1H Cross Line Laser Rotary Laser Level
Automatic Anping (gravity pendulum - magnetic damping) mode, easy to use and reliable.
Laser with a wavelength of 635nm makes laser lines clear and bright.
Create a vertical line and a horizontal line orthogonal to each other, vaginal discharge point (red).
Can be used indoors and outdoors.
Easy-wide fine-tuning mechanism, 360°rotating, stable and flexible, can be precisely identify the target.
Specification:
| Horizontal accuracy | ± 1mm / 5m |
| Vertical accuracy | ± 1mm / 5m |
| Under point accuracy | ± 1mm / 1.4m |
| Orthogonal accuracy | 90 ° ± 60 " |
| Zenith precision | ± 2mm / 3m |
| Automatic Anping range | approximately ± 2.5° |
| Launch angle | vertical lines ≥110 °, horizontal ≥130 ° |
| Laser wavelength | vertical and horizontal 7x635nm; next point 1x650nm |
| Working distance | indoor working radius of about 10m; using detectors, working radius 50m |
| Laser emitted power | 1mw less (safety standard 2) |
| Power | 4.5V (3xAA battery) not included |
| Operating temperature | 5 C - + 40 C |
| Size | 90 (φ) X195 (H) mm |
| Weight | 1.6kg |
| Continuous working time | about 6 hours (full brightness laser tube) |
How to use:
Set the instrument on the tripod or a stable surface, adjust the instrument. If the instrument is too tilted, out of range, the laser tube will automatically turn off (or if audible alarm)
Switch knob clockwise to open the instrument, the instrument top green indicator light, while emitting a laser beam
Turn the instrument, the laser beam toward goals
Gently adjust knob, find work orientation
When work is over, turn the switch knob counterclockwise, turn off the instrument .
With light point designed outdoor environments, provide convenience for the construction.
Package includes:
1 x Plastic protective case
1 x 5 Lines Laser Level ( Two colors for opition~)
1 x AC110-240V Power supply
1 x protective glasses
1 x reference plate
1 x Belt
1 x 5 Lines Laser Level ( Two colors for opition~)
1 x AC110-240V Power supply
1 x protective glasses
1 x reference plate
1 x Belt
Details pictures:
