5Pcs 600V 50A 50Amp Anderson Style Grey Plug Connector Carvan Charger Battery Connector
Specifications:
| Color: Grey | Housing Material: Polycarbonate (PC) | Contact material: Pure copper silver plating |
| Rated Current: 50A | Rated Voltage: 600V | Voltage:For 12v or 24v Use |
| Flammability Rating of Housing Material: UL94 V- 0 | Connector Dimensions: 35.1mm x 48mm x 15.9mm | Cable Size: 6B&S / 6AWG (up to 13.3 sq mm) |
| Average contact resistance: 0.05MΩ | Voltage proof: 2200V (DC) | Insulation resistance: 500MΩ |
| A. No load (Contact/Disconnect Cycles): To 10,000 | B. Under load (Hot Plug 250cycless@120V): 50A | Operating temperature range: -20°to 105° |
Features:
??Prevents accidental cross mating of circuits.
??For signal transmission or the added safety of a premate ground position.
??Contacts feature a sacrificial tip that allows high current circuit interrupt.
??Provide simplified assembly and minimize the number of components.
??Suitable for Solar Panels, Dual Battery Systems, Caravans, 4WD, Fridges etc.
??Silver plated copper contacts inside housings that strongly force the contacts together.
??The Plugs is Impact Resistant Polycarbonate and Connectors are Silver plated Solid Copper Terminals.
??/span>Application:
Common use includes: Battery Connections,Forklifts,Battery Chargers,Solar Panels,Wind Generators,Tow Trucks,Snow Plows,Farm Equipment,Jumper Booster Cables,Welding Equipment,Winches,Electric Vehicles.etc

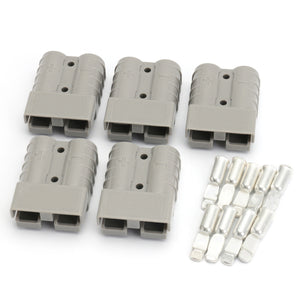

Package included:
5 x Plugs
10 x Terminals
