4V230C-08 DC 12V Double Head 3 Position 5 Way Pneumatic Solenoid Valve
Tax included.
Description :

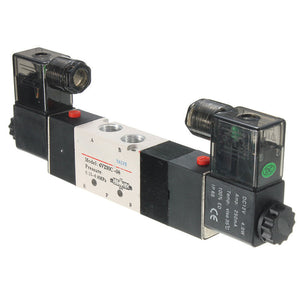

4V230C-08 DC12V Double Head 3 Position 5 Way Pneumatic Solenoid Valve
Specification :
Product Name: Pneumatic Solenoid Valve
Model: 4V230C-08
Working Medium: 40 Micron Filtered Air
Motion Pattern: Inner Guide Type
Type : 3 Position 5 Way
Material: Resin, Plastic
Working Voltage/Current/Power: DC12V, 120mA, 3.0W
Temperature: Rise 35??br />Operating Pressure : .5 ~ 8kgf/cm2
Effective Area: 12mm²
Port Connection: Air Inlet =Air Outlet=PT 1/4, Exaust =PT 1/8
AirInlet Diameter: 1.15cm/ 0.45"
Air Exhaust Diameter: 0.85cm/0.335
Black Pull Into Diameter: 1.1cm/ 0.43"
Wiring Form: Direct Lead Wire or Connector
Package includeds :
1 x Pneumatic Solenoid Valve
Details pictures :
