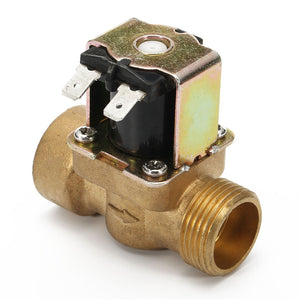

3/4 Inch Electric Solenoid Valve 12V DC VDC Slim Brass NPSM Gas Water Air N/C
Tax included.
Specification:
Package included:
1 x Solenoid Valve
| Material | Body | Cast high-quality solid brass |
| Insert | Stainless steel (plunger, spring, etc.) | |
| Seal | NBR (aka Buna-N, Perbunan, and nitrile rubber) | |
| Diaphragm | NBR with nylon support | |
| Operation Mode | N/C (normally closed) | |
| Voltage | 12V DC | |
| Applications | Space-limited, energy-efficient, home, hobbyist | |
| Operation Type | 2-way 2-position direct lift diaphragm | |
| Water pressure | 0.02-1.0Mpa | |
| Size | 64*60*35mm | |
| Pipe Size | 3/4" NPSM | |
| Orifice Diameter | 3/8" (9 mm) | |
| Flow Direction | Unidirectional (follow the arrow on valve body) | |
| Media | Water, air, natural gas, propane, butane, petroleum oil, mineral oils, diesel, low viscosity fluid, etc. (Do NOT use with gasoline) | |
| Operating Pressure Differential | 3-145 psi (0.02-1 MPa) | |
| Operating Temperature | 15-125 °F (-10~50 °C) | |
| Media Temperature | 15-180 °F (-10~80 °C) | |
Package included:
1 x Solenoid Valve
