2x4 Inch Mesh Platinized Titanium Anode Plating Rhodium Palladium
Tax included.
Description:

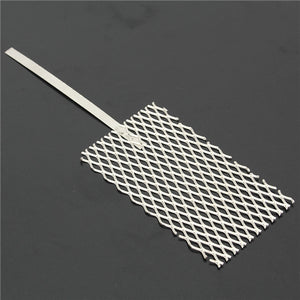

ANODE is a Mesh Platinized Titanium Anode designed to use in electro plating baths for Rhodium and Palladium Plating
or acid-based Gold solutions. The anode is a Mesh type measuring 2"x4" with a stem that measures 4" in length may be
bent to hang over the edge of the Pyrex Beaker allowing the mesh portion to be immersed in the Solution.
Specification:
* Material: Platinized titanium
* Color: Silver
* Voltage: 1-2V
* Anode cathode area ratio =2:1
* Dimensions:
* Mesh: 5 x 10cm/2" x 3.9"
* Thickness: 1.6mm
* Long stem: 10cm/4"
Features:
??Platinum coating thickness of titanium mesh 0.5um.
??The distance between the cathode and the anode is at least greater than 5cm
Package Included:
1 x Platinized Titanium Anode
