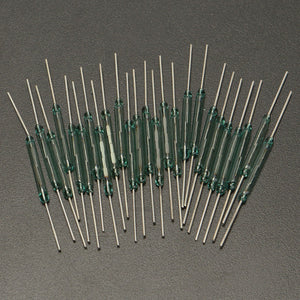

25pcs Reed Glass Magnetic Switches N/O SPST 300VDC 3X20MM
Tax included.
Descripyion:
Reed pipe is a passive electronic component, is widely used in various communication devices.
It is the use of a magnetic field signal to control a circuit switching device, also known as "magnetron."
In practice, generally using a permanent magnet control the two metal sheets turned on or not, it is
also known as "magnetron."
Specifications:
Total Length:55mm
Glass Length:20mm
Glass Diameter:3mm
Contact Form:A
Max. Contact Rating:10W
Max. Switching Voltage:300VDC
Min. Breakdown Voltage:150VDC
Max. Switching Current:0.5A
Max. Initial Contact Resistance:100 mΩ
Min. Insulation Resistance:109Ω
Max. Operate time:0.5 ms
Bounce time:0.2 ms
Max. Release time:0.3 ms
Min. Resonant Frequency:5000 HZ
Max. Operating Frequency:400 HZ
Pull in Value:20-70 AT
Min. Drop out Value:4 AT
Max. Contact Capacitance:0.5 pF
Electrical Life:50mV-10μA-1x106
Resistive loads (VDC):24V-250mA-105
Test Coil:5000T
Packing Included:
25xReed Glass Magnetic Switches
