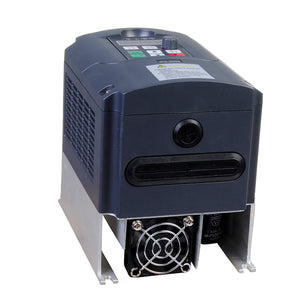

220V 2.2KW Variable Frequency Drive VFD Inverter
Tax included.
Description :
220V 2.2KW Variable Frequency Drive VFD Inverter
The VFD can be used for constant torque loads (eg hard start: air compressor, HVAC unit) and variable torque loads
(eg pumps, fans, etc.).
It can be used as a motor speed control and phase converter. The input to this VFD is 1 or 3 depending on your preference.
When you use this VFD, you can control different speeds as needed.
Can be used: lathes, milling cutters, car hoists, pumps and conveyors, etc., and then perform well. The project uses a sine wave PWN (SPWM) as the control system for excellent performance.
Features :
1) PID control; advanced calculus PID closed-loop algorithm, fast response and strong adaptability;
2) Simple PLC function can realize 16 speed and inverter control function;
3) RS485 communication port, using standard international MODBUS main circuit control;
4) It has strong anti-interference ability;
5) Low output torque 0.5HZ-150%, low speed running capacity;
6) Carrier adjustable 16KHZ, completely silent working environment;
7) Wide voltage working area, 304V-456V normal operation;
8) Automatic voltage regulation (AVR) technology to ensure inverter load capacity;
9) Synchronous and non-synchronized various control technologies to dynamically achieve fast start without changing the brake;
10) It has perfect error protection and short-circuit protection protection;
Tech parameters :
The VFD can be used for constant torque loads (eg hard start: air compressor, HVAC unit) and variable torque loads
(eg pumps, fans, etc.).
It can be used as a motor speed control and phase converter. The input to this VFD is 1 or 3 depending on your preference.
When you use this VFD, you can control different speeds as needed.
Can be used: lathes, milling cutters, car hoists, pumps and conveyors, etc., and then perform well. The project uses a sine wave PWN (SPWM) as the control system for excellent performance.
Features :
1) PID control; advanced calculus PID closed-loop algorithm, fast response and strong adaptability;
2) Simple PLC function can realize 16 speed and inverter control function;
3) RS485 communication port, using standard international MODBUS main circuit control;
4) It has strong anti-interference ability;
5) Low output torque 0.5HZ-150%, low speed running capacity;
6) Carrier adjustable 16KHZ, completely silent working environment;
7) Wide voltage working area, 304V-456V normal operation;
8) Automatic voltage regulation (AVR) technology to ensure inverter load capacity;
9) Synchronous and non-synchronized various control technologies to dynamically achieve fast start without changing the brake;
10) It has perfect error protection and short-circuit protection protection;
Tech parameters :
1) Input voltage: 220V (+/- 15%)
2) Output voltage: 220VAC
3) Input frequency: 48 - 63 Hz
4) Output frequency: 0 - 630Hz
5) Input phase: 1 phase or 3 phase (220V is 1 phase)
6) Output phase: 1 or 3 phases (220V for 1 or 3 phases)
2) Output voltage: 220VAC
3) Input frequency: 48 - 63 Hz
4) Output frequency: 0 - 630Hz
5) Input phase: 1 phase or 3 phase (220V is 1 phase)
6) Output phase: 1 or 3 phases (220V for 1 or 3 phases)
Specification :
| Control Mode | SPWM |
| Input Power | 170~240V for 220V power |
| 4 Digits Display & Status Indicator Lamp | Displaying frequency, current, revolution, voltage, counter, temperature, forward or reserve running, and fault, etc. |
| Communication Control | RS-485 |
| Operation Temperature | -10~40??/span> |
| Humidity | 0-95% Relative Humidity(without dew) |
| Vibration | Below 0.5G |
|
Protection Functions |
Overload Protection | Electronic relay protection motor Drive(for constant torque 150%/1 min. for the kinds of fan 120%/1min.) |
| FUSE Protection | FUSE broken, Motor stops. | |
| Over-voltage | DC Voltage >400V for 220V class | |
| Low Voltage | DC Voltage <200V for 220V class | |
| Instant Stop and Restart | Restarted by frequency track after instantaneous stop. | |
| Stall Prevention | Anti-stall during Acc / Dec run | |
| Output End Shorts | Electronic circuit protecting | |
| Other Functions | Fin over-heat protection, restriction of reverse running,direct start after power on, fault reset, parameter lock PID,one-drive-more, etc. |
Package includes :
1 x Variable Frequency Drive VFD Inverter (220V 2.2KW )
1 x Variable Frequency Drive VFD Inverter (220V 2.2KW )
