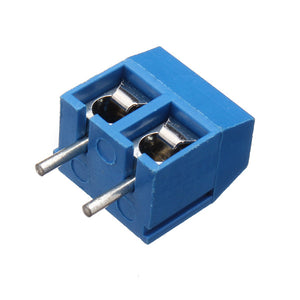

Excellway DR66 50pcs 2pins Printed Circuit Board Connector Block Screw Terminals
Tax included.
Description:
This is a very useful and practical accessory achieving electrical connection. For example, two wires needed to be connected, then you can use the terminal to get them connected. You can also disconnect at any time, without having to weld them together or intertwined, it is quick and easy.
Specifications
Brand:Excellway®
Model:DR66
Dimensions: (approx.)10mm*10mm*7.5mm/0.4"*0.4"*0.3"
Length of pins: (approx.) 4.5mm/0.18"
Material:
Package included
50 x screw terminals
This is a very useful and practical accessory achieving electrical connection. For example, two wires needed to be connected, then you can use the terminal to get them connected. You can also disconnect at any time, without having to weld them together or intertwined, it is quick and easy.
Specifications
Brand:Excellway®
Model:DR66
Dimensions: (approx.)10mm*10mm*7.5mm/0.4"*0.4"*0.3"
Length of pins: (approx.) 4.5mm/0.18"
Material:
Plastic part: PBT,UL94V-0
Screws part: M2.5, steel, Cr3+ plating color zinc passivated
Solder pin: Brass, tinning;reed, stainless steel
Reference Standard: UL IEC
Rated Voltage: 250V 300V
Rated Current: 17.5A 15A
Rated Current: 17.5A 15A
Temp. Range: -30°C~+120°C
Wire range:22-14 AWG, 1.5 mm
Package included
50 x screw terminals
