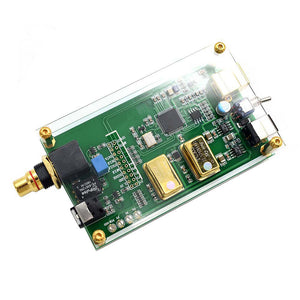

XMOS XU208 Asynchronous USB Coaxial Fiber Output Digital Interface IIS DSD256 Spdif Dop64 PCB Board with Acrylic Case
Tax included.
Features:
1.XU208 uses double-layer immersion gold PCB design (others are mostly tin-plated)
2.XU208 supports IIS interface output DSD256 pcm384k SPDIF fiber coaxial output pcm 192khz dop64 (other models without fiber output)
3.XU208 supports sampling frequency display f0 f1 f2 f3 dsd-pcm can display different sampling frequencies (we have sampling indications compared with other pcm dsd instructions)
4.XU208 uses 2 ultra-low noise LDO lt1763 regulator power supply price is several times the aDP 150aujz-3.3v voltage regulator
5.XU208 output port with DSD on
6.XU208 supports external 5V dc power supply
7. PCB size: 100 x 60mm.
Sample Rate Supported by Each Output Interface:
Fiber Coaxial PCM: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz
DSD: DOP64
IIS: PCM: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHz, 384KHz
DSD: 2.8MHz (DSD64) - DoP, native
5.6 MHz (DSD128) - DoP, native
11.2 MHz (DSD256) - native
[Where I2S out supports all sampling rates, S/PDIF supports up to 192KHz and DOP DSD64]
Bit width: up to 32 bit over I2S output
Up to 24 bit over S/PDIF
System Compatibility:
1. Windows 7, Windows 8, Windows 10; 32/64 bit, need to install a dedicated driver
2. Native 10.6 and later, using the system comes with a driver
3. Native Linux with UAC2 compliant kernel, using the system's own driver, (tested on Ubuntu and Daphile systems, based on INTEL X86 platform)
4. Android OS 4.2 and above, the device needs to support OTG function, in general, the Android 5.0 system is supported by default.
Package Included:
1 x XMOS XU208 Asynchronous USB Coaxial Fiber Board
