Wireless ESP32 Module SX1276 LoRaWAN Protocol WiFi BLE
Tax included.
Heltec LoRa Node Products Difference Table:
Feature:
“Heltec LoRa” product family already included follow options:
LoRa spread spectrum communication (node);
Battery powered;
Good RF circuit design and impedance matching.
| Product | Type??/span> | MCU | FLASH | Battery | Battery Detect | Vext??/span> | Low Power??/span> | Display |
| WiFi LoRa 32 | Dev-Board | ESP32 | 4MB | Lithium??/span> | x | x | x | OLED (128x64) |
| WiFi LoRa 32(V2) (Product ID: 1639291) |
Dev-Board | ESP32 | 8MB | Lithium??/span> | √ | √ | 800uA | OLED (128x64) |
| Wireless Stick (Product ID: 1639290) |
Dev-Board | ESP32 | 8MB | Lithium??/span> | √ | √ | 800uA | OLED (64x32) |
| Wireless Stick Lite (Product ID: 1638098) |
Dev-Board | ESP32-PICO | 4MB | Lithium??/span> | √ | √ | 35uA | x |

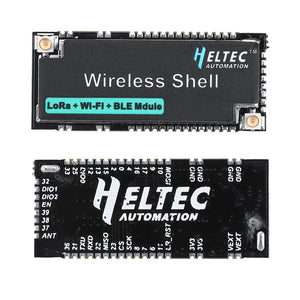

| Wireless Shell (This item) |
Module | ESP32-PICO | 4MB | – | √ | x | 10uA | x |
| LoRa Kit 151 (Product ID: 1639289) |
Dev-Board | STM32L151CBU6 | 128kB | Lithium | x | x | 7uA | x |
| LoRa Node 151 (Product ID: 1638100) |
Dev-Board | STM32L151CCU6 | 256kB | 1/2 AA Lithium chlorine sulfite battery | √ | √ | 1.8uA | x |
| Turtle Board (Product ID: 1638099) |
Dev-Board | STM32L432KC | 256kB | AAA x 2 | √ | √ | 5uA | x |
Notes:
??– Type:
Dev-Board – Can be used directly;
Module – Only core function, need to cooperate with external PCB or circuit.
??– Lithium: All lithium battery socket for Heltec boards is SH1.25-2;
??– Vext: 3.3V(500mA) output, for external devices (e.g. sensors) power supply, in deep sleep mode, Vext can be shut down via software;
??– Low Power: Products’ low power design, of Whole Circuit, the measured data are the current of the system during deep sleep.
Feature:
-Main control chip ESP32-PICO (dual-core 32-bit MCU + ULP core), with LoRa node chip SX1276;
-RF shielding(contain a shield shell) and other protection measures;
-Integrated WiFi, LoRa, Bluetooth network connections, both of them are IPEX socket;
-Support the Arduino development environment;
-(Exclusive) Supports the Arduino version of the ESP32 + LoRaWAN protocol routine provided by Heltec. This is a standard LoRaWAN protocol that can communicate with any gateway/base station running the LoRaWAN protocol (requires serial number activation, only the development of the company) The board is available, the serial number can be queried on this page);
-With good RF circuit design and basic low-power design (sleep current: 10uA theoretically), it is convenient for IoT application vendors to quickly verify solutions and deploy applications;
| Source | Parameter | |
| MCU | ESP32-PICO-D4( 240MHz Tensilica LX6 dual-core + 1 ULP, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth) | |
| LoRa chip | SX1276 | |
| LoRa bands | EU_433, CN_470_510, EU_863_870, US_902_928 four bands optional | |
| LoRa maximum output power | 18 ± 2dB | |
| Hardware resources | UART x 3; SPI x 2; I2C x 2; I2S x 1 | |
| 12 – bits ADC; 8 – bits DAC | ||
| 44 general GPIO | ||
| FLASH | internal 4MB(32M-bits) SPI FLASH | |
| Interface | LoRa antenna (IPEX) x 1; Wi-Fi / BLE antenna (IPEX) x 1 | |
| Size | 38.4 x 16.1mm | |
| External device power control (Vext) | √ | |
| Low power design | deep sleep mode 10uA | |
| Electrical characteristics | Condition | Minimum | Typical | Maximum |
| Power Supply | 3.3V power supply(≥500mA) | 2.7V | 3.3V | 3.5V |
| Power consumption(mA) | WIFI scan | 115mA | ||
| WIFI AP | 135mA | |||
| LoRa 10dB emission | 100mA | |||
| LoRa 12dB emission | 105mA | |||
| LoRa 15dB emission | 120mA | |||
| LoRa 20dB emission | 145mA | |||
| Output | External device power control Vext (3.3V) | 350mA |
Package includes:
1 x Wireless ESP32 Module
Files support:
Files support:
How to install Heltec ESP32 Aduino Develoment Environment:
Wireless Shell Source Code:
Heltec ESP(ESP32 & ESP8266) framework (the basic of Heltec ESP series products Arduino running environment): https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series
Heltec ESP32 library (must work with Heltec ESP framework): https://github.com/HelTecAutomation/Heltec_ESP32
Heltec ESP32 LoRaWAN library (a standard LoRaWAN protocol library provide by Heltec Automation, need a license to active: http://www.heltec.cn/search/): https://github.com/HelTecAutomation/ESP32_LoRaWAN
Wireless Shell Pinout Diagram:
AutoCAD & 3D Drawing:
Reference Hardware Design:
Wireless Shell Reference Hardware Design Schematic: https://docs.heltec.cn/download/wireless_shell_reference_hardware_design.pdf
Wireless Shell Schematic & PCB Package (Altium Designer 18.1.7): https://docs.heltec.cn/download/wireless_shell_packages.zip
Summary of Common Problems:
