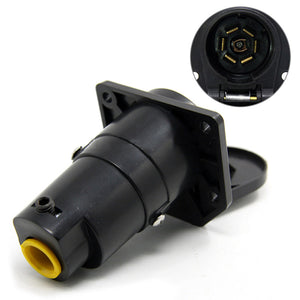

Tirol T21848 USA 7 Way Socket Round Trailer Connetor RV Light Plug Conenetor Vehicle End Female

Tirol T21848 USA 7 Way Socket Round Trailer Connetor RV Light Plug Conenetor Vehicle End Female

Product Details & Item Specifics

Item Type: Electrical Plug & Sockets
Item Name: 7-Pin Trailer Plug
Brand Name: Tirol
Item NO: T21848
Size: 11*7.5*7CM
Weight: 145g
Material: Plastic
Color: Black
Input:  12V

Product Description:

This standard, RV-style, 7-pole connector provides a secure connection between your trailer and tow vehicle. Connect the major vehicle and the additional trailer; Transfer the electronic signature from the vehicle to trailer. Black plastic construction prevents rusting, enhances appearance and makes plug removal a snap.

- Standard, 7-pole plug connects trailer to socket on tow vehicle
- Black plastic construction
- Enhances appearance
- Prevents difficulty in plug removal
- Non-corroding, shock-resistant interior design
- Terminal reinforcer dams eliminate shorting out
- Prevent contact from spreading
- Center pin accepts up to 8-gauge wire
- Vinyl inserts keep out dirt and moisture
- Promote easy removal of plug from socket
- Ensures connector is plugged into socket

Trailer Wiring Color Code
Function	Color	Suggested Minimum Wire Gauge	Where To Attach - Vehicle Side	Where To Attach - Trailer Side
Right Turn	Green	16	Right turn of vehicle's wiring harness	Trailer's right turn signal
Left Turn	Yellow	16	Left turn of vehicle's wiring harness	Trailer's left turn signal
Ground	White	12	Vehicle ground point - metal, uncoated, rustproof	Trailer ground point - metal, uncoated, rustproof
Tail/Marker	Brown	16	Taillight of vehicle's wiring harness	Trailer's taillights
Brake	Blue	12	Electric brake control, power for brakes	Break away switch
Battery	Red or Black	12	Fuse block or FUSED battery Lead	Break away kit, interior lights and battery charger
Backup	Purple	16	Back up circuit of vehicle's wiring harness	Back up lights (if available) / Hydraulic coupler

Note: This chart is a typical guide, wire colors may vary based on manufacturers. Use a circuit tester to verify connections.

Package Included

1 x 7PIN Trailer Plug
