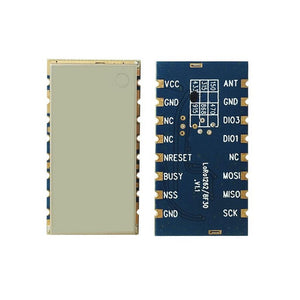

SIWEI LoRa1262F30 RF Module 1.5W SX1262 868 915 MHz Wireless Module
Tax included.
Feature:
Frequency Range:868/915 MHz
Sensitivity up to -148dBm @Lora
Receive power consumption < 7 mA
Maximum output power: 33dBmï¼?w）@6V
Data transfer rate:0.018-62.5 Kbps
Packet engine up to 256 bytes with FIFO and CRC
Modulation mode：Lora TM?�ï?G）FSK
Pins:
VCC: Power Supply
GND: Power Ground
NC: Hanging
NRESET: Reset trigger input
BUSY: For status indication,see chip information
NSS: SPI chip select input
GND: Power Input
SCK: SPI Clock
MISO: SPI data output
MOSI: SPI data input
DIO1: Digital I/O.customizable
DIO3: Digital I/O, customizable
GND: Power ground
ANT: 50 ohm coaxial antenna
Package Included:
1* LoRa Module
