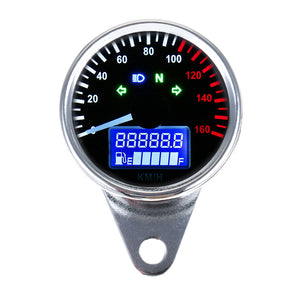

Motorcycle LCD Odometer Multifunctional Fuel Gauge Headlight Turn Signal Display Meter

Description:

Easy to install, durable

Displaying time, have internal night light

The button to switch mileage subtotal

Large-screen LCD anti-dazzle display, easy to read

Easy assembly, anti-vibration, anti-glare design, sun-proof

Alarm functions: Low oil alarm, low voltage alarm

Indicator functions: the left turn signal, right turn lights, high-beam, position lights, N lights

Can offer Wiring Diagram

Waterproof: Professional structure design makes the ecellent performance on waterproof

Shockproof: Confirm the stability of electronic component

Fitment: 1/2/4 cylinders motorcycle, Dirt Bike, ATV,Scooter, boat and marine etc.



Specification:

Material: ABS

Dial Diameter: 67mm

Sensor Cable Length: 30cm

Case Color: Black

Working Voltage: 12V DC



 Fuel Level Table:

Over speed warning light

Pane backlight luminescence.

Left turing, right turing, headlight indicator



Light Color:

High-Beam: Blue

Left and Right Blinker: Green

LCD Screen Backlight: Blue, always on



How To Connect:

Green Line - Ground

Light blue line - turn right

Orange line - turn left

Blue line - high-beam

Blue and white lines - oil volume sensing

Green Red Line - Neutral light



Package Included:

1 X LCD Digital Speedometer

1 X Tie

1 X Tube
