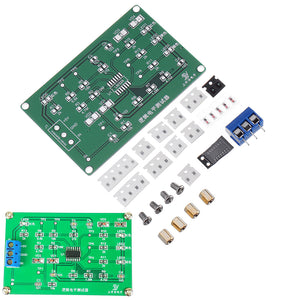

Logic Level Tester Electronic DIY Kit Electronic Product Contest DIY Kit
Tax included.
Circuit function:
1. Detect logic signal input
When there is no logic signal input, LED2 emits yellow light, and when there is a logic level signal, LED2 does not emit light.
2. Determine the type of logic signal
If it is the high logic level of the input, LED1 lights red, if it is the low logic level, LED3 lights green.
Package included:
1 x Logic Level Tester Electronic DIY Kit
1. Detect logic signal input
When there is no logic signal input, LED2 emits yellow light, and when there is a logic level signal, LED2 does not emit light.
2. Determine the type of logic signal
If it is the high logic level of the input, LED1 lights red, if it is the low logic level, LED3 lights green.
| PCB mark | Name | Package | Quantity |
| R10-R13 | 2k resistor | 0805 | 4 |
| R1 | 10k resistor | 0805 | 1 |
| R2 | 10M resistor | 0805 | 1 |
| R3, R9 | 4.7M resistor | 0805 | 2 |
| R5 | 18K resistor | 0805 | 1 |
| R6 | 6.8K resistor | 0805 | 1 |
| R4 | 27K resistor | 0805 | 1 |
| R8 | 1M resistor | 0805 | 1 |
| R7 | 1.5M resistor | 0805 | 1 |
| C1 | 101 capacitor | 0805 | 1 |
| Ca, Cb, Cc, Cd | 103 capacitor | 0805 | 4 |
| LED0, LED1 | red LED | 0805 | 2 |
| LED2 | yellow LED | 0805 | 1 |
| LED3 | green LED | 0805 | 1 |
| J1 | Power port | 1 | |
| IC1 | LM324 | SOP-14 | 1 |
| VD1-VD4 | IN4148 Diode | 4 |
Package included:
1 x Logic Level Tester Electronic DIY Kit
