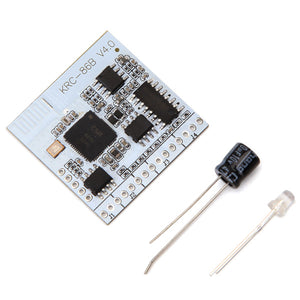

KRC-86B Bluetooth 4.0 Stereo Audio Receiver Module

KRC-86B Bluetooth 4.0 Stereo Audio Receiver Module

  • Save R 750
Tax included.
SKU:
KRC-86B Bluetooth 4.0 Stereo Audio Receiver Module

Description:

Using CSR8630 Bluetooth chip that supports A2DP, AVRCP,Bluetooth version: V4.0+EDR
Automatic control technology, simple operation, easy to use
If the connection button, you can control your phone or computer to play / pause, volume change
It supports two devices simultaneously connected
Support power off automatic connection function

Function:

VCC: Positive power supply 3V-5V
GND: Negative one
LED+: Connected diode anode
LED-: Connected diode cathode
AGND: connected to an audio signal Cathode
OUTR: Right Output
OUTL: Left Output
INR: AUX right input
INL: AUX left input
com: button common terminal
Play / Stop: Play / Pause
VOL + / NEXT: short press next song, long press volume up
VOL - / REV: short press last song, long press volume down
EN: Bluetooth connection is high level (3.3V), disconnect the Bluetooth low level
NC: Function Reserved

Package included:

1 x KRC-86B Bluetooth 4.0 Stereo Audio Receiver Module
