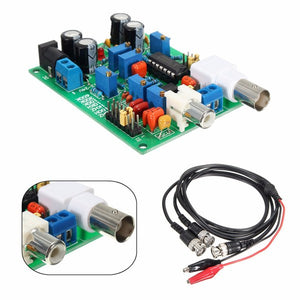

ICL8038 Signal Generator Module + BNC Cable Clip Sine Square Triangle Wave
Tax included.
Features:
Single power supply, can use 12 v to 24 v power adapter
Use the 12 v power supply, sine wave maximum output: 0 to ±3 v(adjustable), 24 v power supply sine wave: 0 to ± 9 v(adjustable)
Output current is below 9mA. If the load need large current, please add a power amplifier module
Can produce high accuracy sine wave, square wave, triangle wave. The frequency and amplitude can be adjusted by external components.
Linear distortion sinusoid distortion = 1%, triangle wave = 0.1%, duty cycle adjustment range is 2% ~ 98%.
Board size: 8.1 cm x 6.3 cm
12 v to 24 v DC socket (5.5-2.1 mm) : inside positive, outside negative
Note:
1. 0-700 Khz, the adjustment above 300 k is very difficult, please be cautious!
2. Adjusting the duty ratio, the frequency will be changed!
3. Potentiometer on the board can not transferred to the maximum or minimum, otherwise it may have no waveform.
Package includes:
1 x ICL8038 DDS Signal Generator
1 x BNC cable
1 x Test clip cable
Single power supply, can use 12 v to 24 v power adapter
Use the 12 v power supply, sine wave maximum output: 0 to ±3 v(adjustable), 24 v power supply sine wave: 0 to ± 9 v(adjustable)
Output current is below 9mA. If the load need large current, please add a power amplifier module
Can produce high accuracy sine wave, square wave, triangle wave. The frequency and amplitude can be adjusted by external components.
Linear distortion sinusoid distortion = 1%, triangle wave = 0.1%, duty cycle adjustment range is 2% ~ 98%.
Board size: 8.1 cm x 6.3 cm
12 v to 24 v DC socket (5.5-2.1 mm) : inside positive, outside negative
Note:
1. 0-700 Khz, the adjustment above 300 k is very difficult, please be cautious!
2. Adjusting the duty ratio, the frequency will be changed!
3. Potentiometer on the board can not transferred to the maximum or minimum, otherwise it may have no waveform.
Package includes:
1 x ICL8038 DDS Signal Generator
1 x BNC cable
1 x Test clip cable
