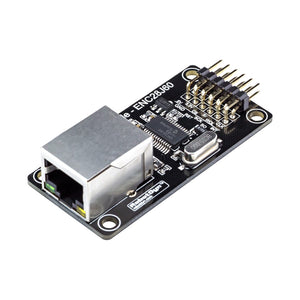

ENC28J60 Ethernet LAN Network Module Shield Power In 3.3V/5V For AVR STM ARM boards
Tax included.
Feature:
ENC28J60 is a 10BASE-T stand-alone Ethernet module with onboard MAC & PHY, 8 Kbytes of Buffer RAM and an SPI serial interface for 3.3V and 5V logic. With small size the ENC28J60 module minimizes complexity, board space, and cost. Target applications include VoIP, Industrial Automation, Building Automation, Home Control, Security and Instrumentation.
Work with All AVR(Arduino) STM, ARM boards.
Connection:
- On the bottom side of the board have a description for connecting of the module.
Package includes:
1 x Ethernet module
| ENC28J60 module | Arduino Uno/Nano/ProMini | Arduino Mega |
| CS | D10 | D53 |
| SI | D11 | D51 |
| so | D12 | D50 |
| SCK | D13 | D52 |
| Reset | Reset | Reset |
| INT | D2 | D2 |
| VCC 5V or 3.3V | 5V or 3.3V | 5V or 3.3V |
| GND | GND | GND |
Package includes:
1 x Ethernet module
