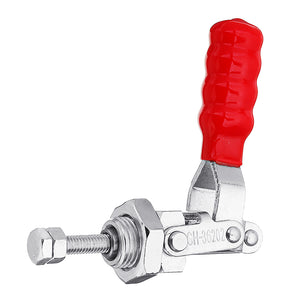

Effetool GH-36202 Fast Clamp Quick Hand Tool Push Pull Type Toggle Clamp
Tax included.
Description:
Effetool GH-36202 Fast clamp quick release hand tool, 91kg holding capacity push pull type toggle clamp.
Effetool GH-36202 Fast clamp quick release hand tool, 91kg holding capacity push pull type toggle clamp.
Quick clip is the use of leverage, linkage mechanism, such as the principle of self-locking through steel stamping,
metal casting and metal car planing and milling processes to make objects out of a quick clamping device fixed object locations.
Specification
Model: GH-36202
Material: HCS / High Carbon Steel
Type: Push pull type
Quantity: 1pc
Usage: Toggle Clamp
DIY Supplies: Metalworking
Type: Push pull type
Quantity: 1pc
Usage: Toggle Clamp
DIY Supplies: Metalworking
| Model | Holding Capacity(kg) | Plunger Stroke | A | B | C | F | D | E | G | H | φ I |
J | K | L |
| GH-36202 | 91 | 20 | 24 | 6.4 | M16 | P=1.5 | 24 | 64.2 | M6=1 | 15.8 | 9.4 | 21 | 12.7 | 75 |
Suitable for: Widely used on welding, jigging, repairing field.
Features:
- High carbon steel is durable, holding capacity is strong.
- Light-duty plunger clamp that locks in extended or retracted position.
- Oil and stain resistant red vinyl hand grips.
- Light-duty plunger clamp that locks in extended or retracted position.
- Oil and stain resistant red vinyl hand grips.
- To provide a clamping force, good grip stability, chuck moving fast, efficient and has a positioning function of manual rapid clip.
- Its role is for a fixed object, positioning the workpiece to facilitate the production and processing, greatly improving productivity.
- It has easy to operate, the clamping force, no moves, no rebound characteristics.
Package Included:
1 x Push-pull type fast clamp
