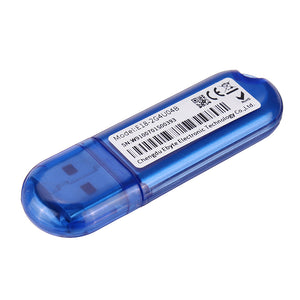

E18-2G4U04B CC2531 2.4Ghz USB Port 4dBm IoT UHF Wireless Transceiver 2.4 GHz Transmitter and Receiver Module
Tax included.
| RF Parameter | Value | Remark |
| Frequency | 2394~2507 MHz | Support ISM band |
| Transmitting power | 4 dBm | - |
| Receiving sensitivity | -96.4 dBm | Air data rate: 250kbps |
| Communication protocal | ZBee | - |
| Test distance | 200m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2.5m, air data rate: 250kbps |
| Hardware Parameter | Value | Remark |
IC |
CC2531F256RHAT/QFN40 |
Built-in PA+LNA |
FLASH |
256 KB |
- |
RAM |
8 KB |
- |
Core |
8051 MCU |
- |
Size |
59 * 18 mm |
With housing |
Antenna type |
PCB |
- |
Powered by |
USB |
- |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Operating voltage | 2.7 | 5 | 5.5 | V | powered by USB |
| Operating voltage | 2.0 | 3.3 | 3.6 | V | powered by pcb power supply hole |
| Communication level | - | 3.3 | - | V | For 5V TTL, it may be at risk of burning down |
| Transmitting current | - | 31.5 | - | mA | Instant power consumption |
| Receiving current | - | 26 | - | mA | powered by USB |
| Sleep current | - | - | - | μA | - |
| Operating temperature | -40 | 20 | +85 | ??/span> | - |
| Operating humidity | 10 | 60 | 90 | % | - |
| Storage temperature | -40 | 20 | +125 | ??/span> |
- |
Package Inlcuded:
1 x E18-2G4U04B CC2531 2.4Ghz USB Port 4dBm IoT UHF Wireless Transceiver
