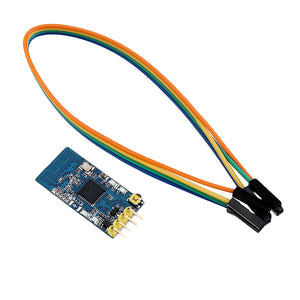

DL-20 CC2530 Wireless Transmission Serial Port Module 2.4G Wireless Transmitting and Receiving
Tax included.
Feature:
Default setting: baud rate 9600, point to point
Wiring sequence: Rx is connected to Tx, Tx is connected to Rx
Voltage range: 3.0V~5.5V, TTL level adaptive
Button configuration: Use the onboard buttons to set up, you can modify the channel, baud rate and working mode of the module.
| Project name | Numerical value |
| Product number | DL-20 |
| Chip selection | CC2530F256RHAR |
| working frequency | 2400~2450MHz |
| Transmit power | 4. 5dBm |
| Transmission rate | Up to 3300Bps |
| Transmission distance | 250 meters (outdoor unobstructed environment test) |
| Operating Voltage | 3. 0V~5. 5V |
| Working current | Less than 30mA |
| Support working mode | Peer-to-peer working mode, broadcast working mode |
| Communication Interface | UART serial port (supports 8 baud rates) |
| Working channel | 2400/4800/9600/14400/19200/38400/57600/115200) |
| Receive spiritual respect | 16 channel divisions in accordance with the IEEE 802.15. 4 protocol |
| Point-to-point bit error rate | -97dBm |
| Broadcast bit error rate | 0. 00% |
| Antenna interface | 0. 50% |
| Operating temperature | Built-in PCB antenna |
| Size | -40° C~80° C |
Package includes:
1 x Wireless Transmission Serial Port Module
