Digital Torque Tester STO-50P > 500 Rounds 50 Hours < 8 Hours DC12V 300ma covered with plastic
Tax included.
Input charger : AC 220V 50Hz
Output charger : DC 12V 300mA
Accuracy : ± 0.5%
+1 digit
Power : 1.2V*6 Ni-MH battery
Charging time : < 8 hours
Responsive frequency : 600Hz
Size : 123*230*65mm
Measuring range : 0.5-50.0kgf.cm , 0.05-5.00N.m , 0.5-45.0Lbf.in
Products Description :

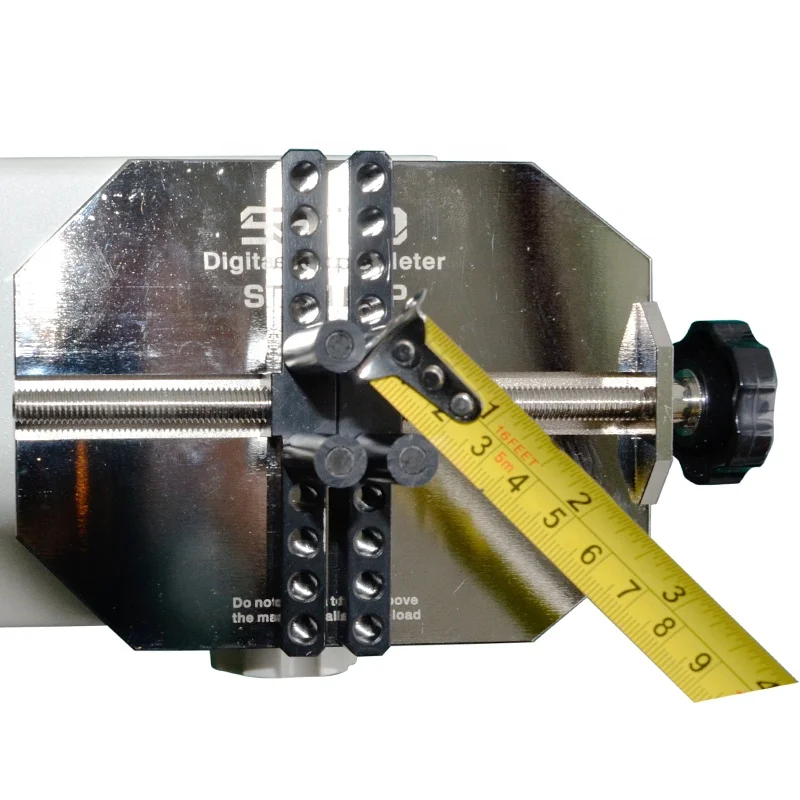

According to the size of the measured object, put the four cylinders respectively to homologous holes location.
Turn the knob of the test clip clockwise to tight the measured object.
Proceed torque measure of the bottle cover (The concrete test method is in accordance with the user guide of intellectualized torque meter).
Turn the knob of the test clip counterclockwise loosen the measured object.
The measuring caliber: Φ18—150mm.
