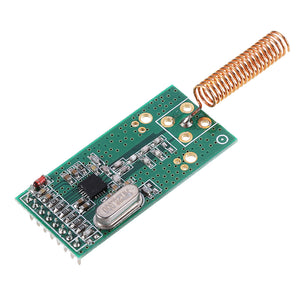

CC1101 433MHz Wireless RF Transceiver Module CC1100 3.3V

CC1101 433MHz Wireless RF Transceiver Module CC1100 3.3V

  • Save R 274.53
Tax included.
SKU:

Specifications:

1)  Operating voltage: 1.8V ~ 3.6V (recommended 3.3V)
2)  The maximum rate of 500kbps, support 2-FSK, GFSK and MSK modulation
3)  Setup softwafe can modify Rate, Power, Frequency
4)  High sensitivity (1.2Kbps, -110dBm, 0.1% packet error rate)
5)  Built-in hardware CRC error detection, and address control
6)  Lower current consumption (RX, 15.6mA, 2.4Kbps, 433MHz)
7)  Programmable control of output power, up to +10 dBm
8)  Wireless wake-up functionality to support low-power electromagnetic activation, wireless wake-up low-power sleep state of the equipment
9)  Support the transmission channel before the au to-clean-up visits (CCA), the Carrier Sense System
10) Fast frequency changes brought about by a suitable synthesizer frequency hopping system
11) Module can be software-based address, software programming is very convenient
12) Standard 2.0mm DIP spacing interfaces for embedded applications
13) Separate 64-byte RX and TX data FIFO
14) Transmission Distance: 300-500 meters in open area (depending on the specific situation of the environment and communication baud rate settings

Package Included:

1 x CC1101 433MHz Wireless RF Transceiver Module
