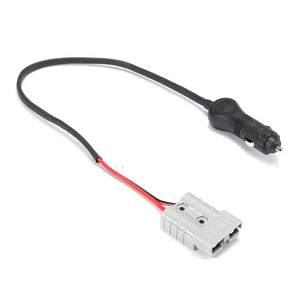

12V 50A Anderson Power Plug UPS Power Style Plug to Male Cigarette Lighter Wire Plug
Specifications:
| Material: | ABS plastic |
| Colour: | black and gray |
| Scope of application: | automobile |
| Working frequency: | high frequency |
| Voltage: | 600V (V) |
| Rated current: | 50A |
| The number: | 2 p |
| Type: | plug/socket |
| Weight: | 94g |
| Size: | Approx. 8x460mm/0.35x18.11'' |
Features:
-Compact and convenient to carry
- Humanized design is beneficial to reduce inventory,
-Keying function helps to prevent two different voltage color connectors.
-Contact shrapnel with imported stainless steel, high durability, suitable for multiple insertion and drawing;
-The working voltage of 600V, (ac or dc) is capable of being used for each other;
-The contact part is copper plated with silver, low impedance and excellent conduction performance.
-The designer can choose a single contact, or choose a long connector which is encapsulated in the shell.
-The loss of the residual corrosion layer of the contact surface is minimized by the insertion and extraction process.Vertical or horizontal installation can be controlled by sliding locking mechanism.
-The products are applicable to all kinds of electric vehicles (electric bus forklift golf cart, tour bus, tractor, battery),
-Communication power supply dc regulated power supply (UPS/EPS inverter power supply and the high frequency, high frequency module charger system), electric machinery, electric wheelchair electric lawn mower vacuum cleaning machine), medical equipment (attract decompression machine electric treatment bed), and other enterprises;
Package Included:
1x Anderson UPS power plug
