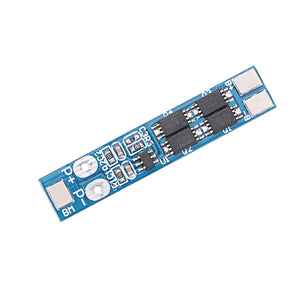

HX-2S-A10 2S 8.4V-9V 8A Li-ion 18650 Lithium Battery Charger Protection Board 8.4V Overcurrent Overcharge Overdischarge Protection

Specifications:



Model: HX- 2S-A10

Maximum working current: 8A

Maximum instantaneous current: 16A

Static current: less than 10uA

Resistance: less than 300 m Ω

Charging voltage: 7 V - 9V

Overcharging range: 4.25-4.35V  plus or minus 0.05V

Over voltage range: 2.5-3.0V plus or minus 0.05 V

Working temperature: - 40 - + 50 ??/span>

Storage conditions: - 40 - + 80 ??/span>

Size: 41 * 8 * 2.2 mm

Short circuit protection: to protect and restore must charge



Welding Point Description:



· B + battery anode;

· B - connect battery negative terminal;

· MMB connect battery 1 to battery 2;

· P + charging/discharge correct poles (charging end/discharge end sharing);

· P - charging/discharge terminal negative terminal (charging end/discharge end sharing).



Package Included:



1 x 2S 8.4V-9V 8A 18650 Lithium Battery Charger Protection Board
