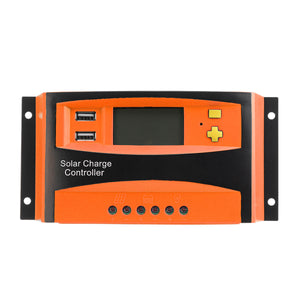

12/24V AUTO 20A/30A/40A/50A/60A Solar Controller Support Dual USB Output & Over-Load Protection for Solar Panel Connecting

Specifications:



- Rated voltage:12/24V AUTO

- Charge current:20A/30A/40A/50A/60A

- Max solar input:12V battery, the highest 23V;24V battery whenYhe highest 46V

- Battery Over Voltage Protection:16.5V

- Float charge:13.8V (defaul.adjustable)

- Discharge stop:11 .OV (defaul,adjustable)

- Discharge  reconnect:12.6V (defaul,adjustable)

- Charge reconnect:13V

- Voltage of open light:Solar panel 8V(Light lights delay)

- Voltage of close light:Solar panel 8V(Light off delay)

- Terminal Scale:28-10 AWG

- Self-consume:<12mA

- Operating temperature:-35~+60??nbsp;



Features:



- Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

- Dual USB output,to support mobile phone charging.

- Accurate temperature compensation,correct charging and discharging voltage,automatically prolong the service life of the battery.

- Input terminal positive and negative extreme reverse connection protection.



Package included:



1 x Solar Charge Controller(choose the current you want)
