10W 14V Monocrystalline Silicon Semi-flexible Solar Panel with 3 x Spring Suppport 5V Single USB + 12V DC Rear Junction Box

10W 14V Monocrystalline Silicon Semi-flexible Solar Panel with 3 x Spring Suppport 5V Single USB + 12V DC Rear Junction Box

  • R 1,336.59
    Unit price per
  • Save R 1,336.59
Tax included.

SKU:

Features:

- Ring binder spring and eyelets for 2pcs-Connecting in parallel.
Polycrystalline solar Cell with efficient up to 19%.
1200mAh standard USB, can full-charge an iX in 4h in max power.
5V USB Output for 5V device charging.
12V Output for 12V device direct charging.
12V Iutput for other 12V cable expanding.
7 layers PET+2xEVA+Cell+2xEVA+PET laminated
Built-in diode to prevent reverse discharge
IP65 waterproof, durable even in harsh environment.

Specifications:

Type: Monocrystalline
Size: 420x190x3mm
Quantity: 1Pcs
Pmax: 20W
Vmax: 14V
Ipmax: 1.5A
Voc: 16V
Isc: 1.9A
DC interface standard: DC5.5x2.1
Max USB Regulator Output: 5V 1200ma
Max DC5.5x2.1 Regulator Output: 12V 1000ma

Tips for DC Input & Output:

You can connect 2pcs (or above) of panel to run them in parallel. For example, Connect Input of panel A to the Output of of panel B to get double power. There is certain line loss due to the DC&USB regulator, please know.
2pcs connected = 40W (Actually 35W)
3pcs connected = 60W (Actually 50W)
4pcs connected = 80W (Actually 65W)
5pcs connected = 100W (Actually 80W)
Please don`t connect them with over 10pcs or it may burn the circuit.

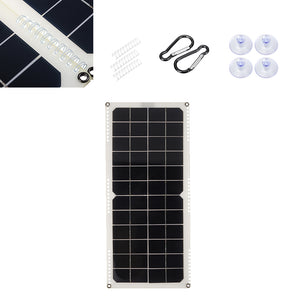

Package Included:

1 x Solar Panel
2 x Carabiner
4 x Sucker
3 x Ring Binder Spring (For Connect 2 Pcs Panel)

Cautions:

* Don't connect the input & output of the same panel itself or it will cause SHORT CIRCUIT!
* Keep it away from strong corrosive objects!
* Don't bend it over 10°coz it`s small size though it`s flexible!
